Insulated Glass is made up of two pieces or several pieces of glass which is bonded with aluminium frame with desicant  in it in order to dry the air, and then it is secondary sealed with silicone sealant.

Low E Insulated Glass is a product which uses one or two pieces of Low E glass, it can reduce heat transfer and increase energy saving effect.

PRODUCT  FEATURE :

◆Energy saving : it has very good heat-insulating property , heat transfer coefficient is much lower than single pane

◆Low noise : it is well insulated from any noise , can deaden noise through window from outdoors into indoors

◆Locking dew , frost and UVR light

Use the low-e insulating glass from Qingdao Aoxing glass , when the outside is cold , the thermal radiation in the infrared and visible light can go through from the film into the indoor in the meantime , the long wave heat energy from obiect , wall air-condition , central heating and body can be returned back to indoor by low-e coating . this can effectived isolation the heat from indoor get across from glass to the chill outside and dissipate . Admirably keep the temperature of Indoor

When the outside torridity , low-e coating can reflect visible light , in the mean time block off the long wave heat energy from sun radiation , mineral pitch road and construction . In this way , it can reduce a lot energy expenditure from the cool down of air-condition.

Insulated  glass Specification：

Glass Thickness: 3-15mm

Max Size: 2500×3500mm

Min Size: 300×300mm

Air or argon spacer gap:6A、9A、12A、15A、20A、25A

Application：

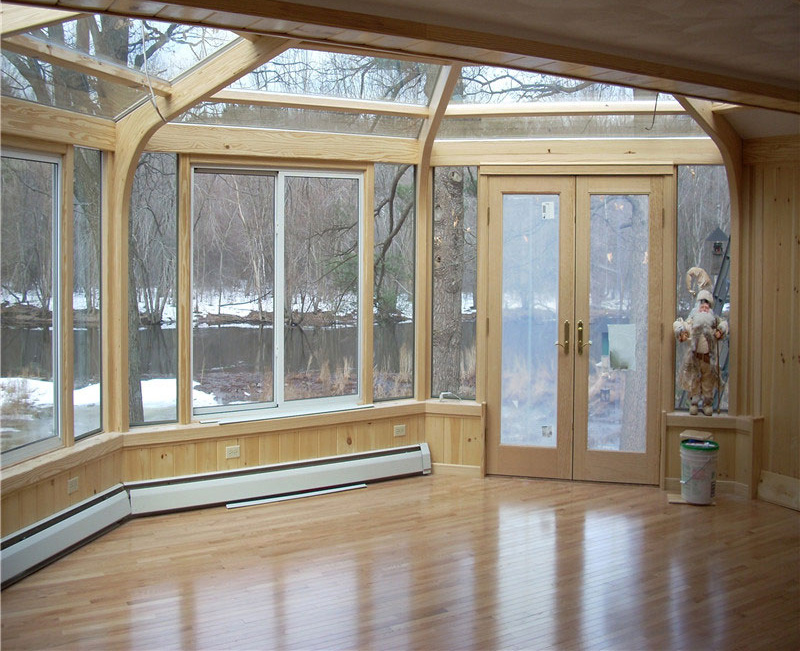

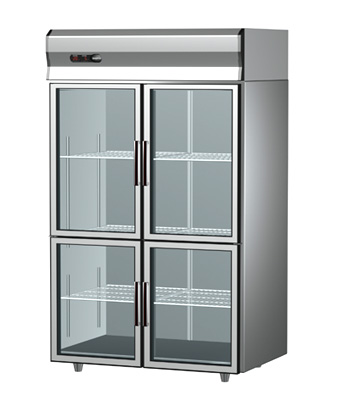

Indoor with air conditioner such as  residential, hotel, hotel office building, school, etc. Door and window for train, car, ship, freezer and cabinets.
